Patriot Docks Premium "T" Floating Dock w/ Gray Aluminum

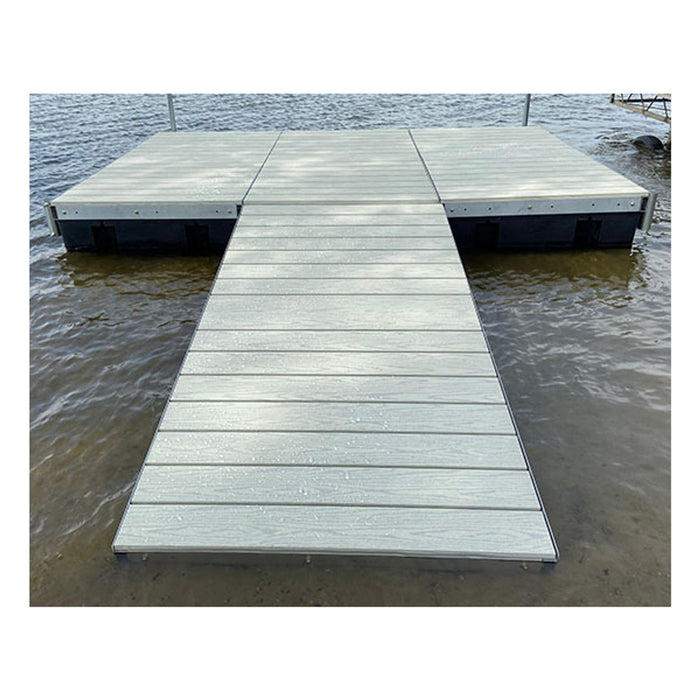

Patriot Docks Premium Low-Profile "T" Floating Dock with Gray Aluminum Decking

Patriot Docks is a name you can trust when it comes to residential and light-commercial floating docks. We are committed to providing the most durable and versatile premium floating dock sections in the market. Patriot Docks Premium Floating Dock Sections can be combined to provide custom solutions for any waterfront.

Constructed of 6000 series marine grade aluminum, the Premium Floating Dock is designed to sit close to the water surface, allowing for easy access in and out of the water. Measuring 96” x 48” x 4-1/2”, and only weighing 50 lbs. per section, the Premium Floating Dock has a 4’ wide usable walking surface and is easy to manage for seasonal removal or maintenance.

The Premium Floating Dock is supported by (2) 48” x 24” x 12” foam filled rectangular floats EVERY 8ft of dock frame, with a total buoyancy rating of 400 lbs. per float. With a UV protected, impact resistant outer shell, these floats will battle the most challenging water conditions.

• Unmatched Performance Buoyancy
• Unmatched Performance Shell Impact Strength
• U.S. Coastguard Approved

A Patriot Docks Floating Hinge Kit is used every 16ft span to ensure natural articulation of the dock and to minimize stress points along the dock structure. The kit allows for 25°of articulation along the 4’ aluminum hinge tube.

Stability is crucial to the performance of any floating dock system. The Patriot DocksTM Premium Floating Docks includes (4) Side Stability Floats EVERY 8ft section of dock frame. The impact resistant HDPE outer shell with EPS foam fill will stand the test of time and abuse in any marine environment. The Side Stability Float measures 43” x 13” x 7” and weighs only 14 lbs. With 150 lbs. of tank tested buoyancy rating, the Side Stability Float will not only increase your docks usable surface area but add critical load support for your floating dock structure.

Features:

• Corrosion-resistant foam helps maintain stability on the water
• Stability floats add critical load support and usable surface area
• To eliminate stress the unique hinge system allows the dock to move with changing water conditions
• The Low-Pro tubular aluminum frame allows the modular floating dock to sit closer to the water than any other dock in the market
• Excellent in deep or fluctuating water levels and extremely soft lake bottoms

24' Floating Dock Kit Includes:

• Qty (5) 4’x8’ Low Profile Floating Dock Frame + Hardware
• Qty (8) 48”x24”x12” Foam Filled Rectangular Floats + Plug
• Qty (8) J-Bolt Float Mounting Hardware Set
• Qty (8) 43”x13”x7” Side Stability Floats + Hardware
• Qty (2) Floating Hinge Kit + Hardware
• Qty (4) 3” Steel Piling Sleeves + Hardware (accept up to 2” o.d pipe)
• Qty (10) 4’x4’ Deck Panels
• Assembly Instructions Included

32' Floating Dock Kit Includes:

• Qty (6) 4’x8’ Low Profile Floating Dock Frame + Hardware
• Qty (10) 48”x24”x12” Foam Filled Rectangular Floats + Plug
• Qty (10) J-Bolt Float Mounting Hardware Set
• Qty (12) 43”x13”x7” Side Stability Floats + Hardware
• Qty (2) Floating Hinge Kit + Hardware
• Qty (4) 3” Steel Piling Sleeves + Hardware (accept up to 2” o.d pipe)
• Qty (12) 4’x4’ Deck Panels
• Assembly Instructions Included

40' Floating Dock Kit Includes:

• Qty (7) 4’x8’ Low Profile Floating Dock Frame + Hardware
• Qty (12) 48”x24”x12” Foam Filled Rectangular Floats + Plug
• Qty (12) J-Bolt Float Mounting Hardware Set
• Qty (16) 43”x13”x7” Side Stability Floats + Hardware
• Qty (3) Floating Hinge Kit + Hardware
• Qty (4) 3” Steel Piling Sleeves + Hardware (accept up to 2” o.d pipe)
• Qty (14) 4’x4’ Deck Panels
• Assembly Instructions Included

Note: Vertical piling pipe is NOT included in any size kit. Customer is responsible for determining acceptable anchoring method.
