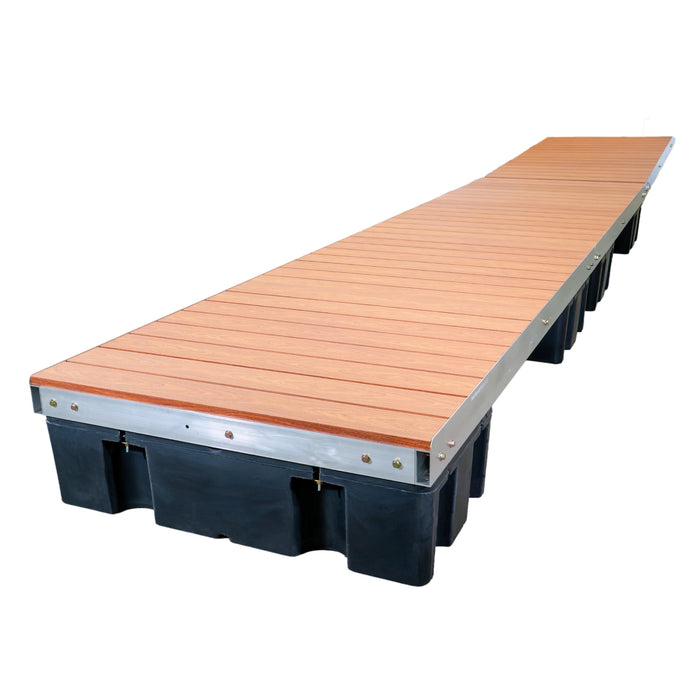

Patriot Docks Floating Dock w/ Brown Aluminum Decking

Patriot Docks Low Profile Floating Dock w/ Brown Aluminum Decking

Floating docks are a great option when you have fluctuating water conditions or the lake bottom is soft and using a stationary dock is not an option. Floating boat docks offer versatility, and endless configuration options, and require very little maintenance. They do not need to be adjusted with changing water elevations.

The Patriot Docks Low Profile Floating Dock is a great choice for almost any lake.  These docks are designed to sit lower to the water than your standard truss-framed docks, which makes them easier to access in and out of the water. The frame is constructed with 6000 series marine-grade aluminum that is designed for years of use. The brown aluminum decking is made with heavy-duty decking materials that are easy to clean and maintain. The dock also comes with rectangular floats that have been tested to a 400-pound buoyancy rating.

Each Patriot Low Profile Floating Boat Dock and be joined together to make up various configurations. They can be bolted together or use a hinge kit that allows for 25 degrees of separation between frames to accommodate for fluctuation of water levels. This model is available in 24’ 32’ and 40’ options.

Key Features:

• With the use of the included transition plate, connecting multiple 4- or 6-foot dock sections is a breeze, allowing for a dock of any length to be assembled from these packages.
• The Patriot Decking reinforced polypropylene decking is manufactured for flexible and easy installation. The maintenance-free decking stays cool even in extreme temperatures and is barefoot friendly.
• Heavy steel 8″ piling sleeves paired with 10″x10″ steel foot plates provide rigidity and a firm stance in the water in any conditions.
• The Patriot Docks Low Profile Stationary Dock frames utilize custom aluminum profiles and professional engineering to create a very strong, yet lightweight dock design that is easy to assemble.
• They are constructed of high quality, marine-grade aluminum that are bolted together for exceptional versatility and customization.

24' Floating Dock Kit Includes:

• (3) 4' x 8' Low Profile Frames
• (6) 4' x 4' Deck Panels
• (4) 48" x 24" x 12" Rectangular Foam Filled Floats
• (1) Low Profile Floating Hinge Set
• (4) Piling Sleeves

32' Floating Dock Kit Includes:

• (4) 4' x 8' Low Profile Frames
• (8) 4' x 4' Deck Panels
• (6) 48" x 24" x 12" Rectangular Foam Filled Floats
• (2) Low Profile Floating Hinge Set
• (4) Piling Sleeves

40' Floating Dock Kit Includes:

• (5) 4' x 8' Low Profile Frames
• (10) 4' x 4' Deck Panels
• (8) 48" x 24" x 12" Rectangular Foam Filled Floats
• (2) Low Profile Floating Hinge Set
• (4) Piling Sleeve

Optional 10864 Side Stability Float is available to increase docks usable surface area and provide added stability and floatation.

Note: Vertical piling pipe is NOT included in any size kit. Customer is responsible for determining acceptable anchoring method.
