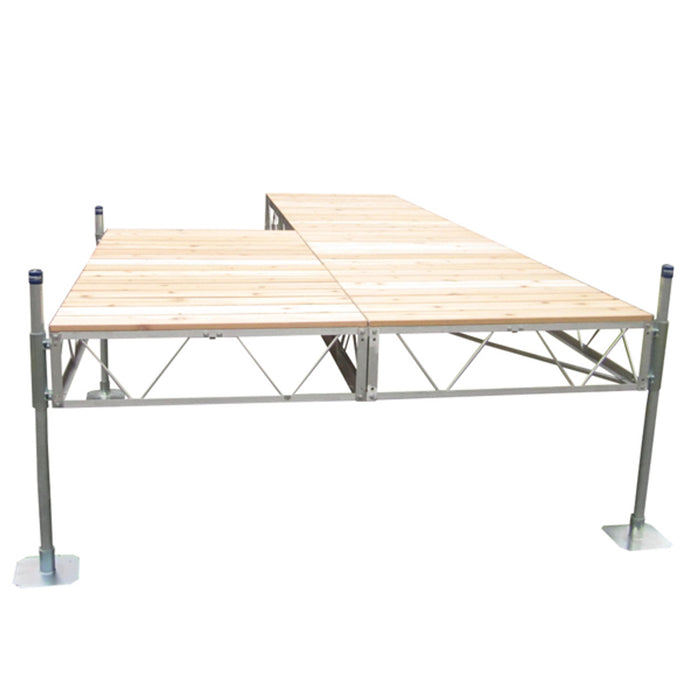

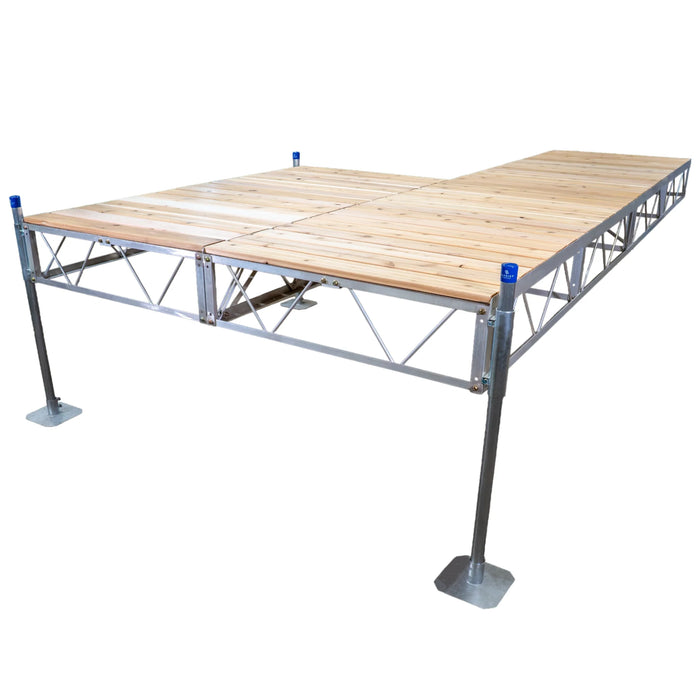

Patriot Docks Patio Dock w/ Cedar Decking

Patriot Docks Patio Dock w/ Cedar Decking

Not every recreational home comes with the ideal docking location. Patriot modular aluminum marine patio docks are customizable to fit even awkward docking spaces. Patriot Dock kits come with durable 12-in. deep aluminum truss frames crafted with welded and bolted connections to last season after season. Additionally, the dock kits feature 7/16 in. diameter aluminum chord rods, not 3/8 in. their competitors. The sturdy pipe is constructed from 1-1/2"-schedule 40 electro-galvanized steel, not lighter weight steel tubing. Pipe brackets are extra long with two - not one - stainless steel set bolts.

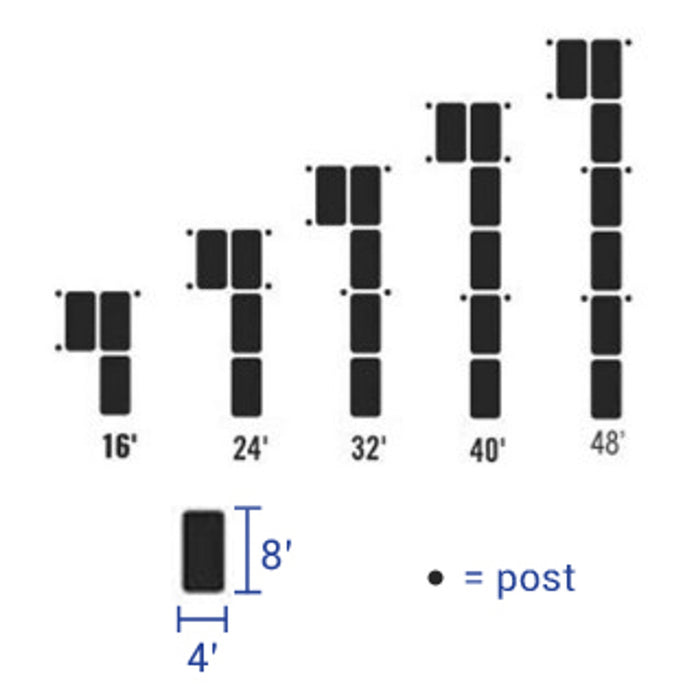

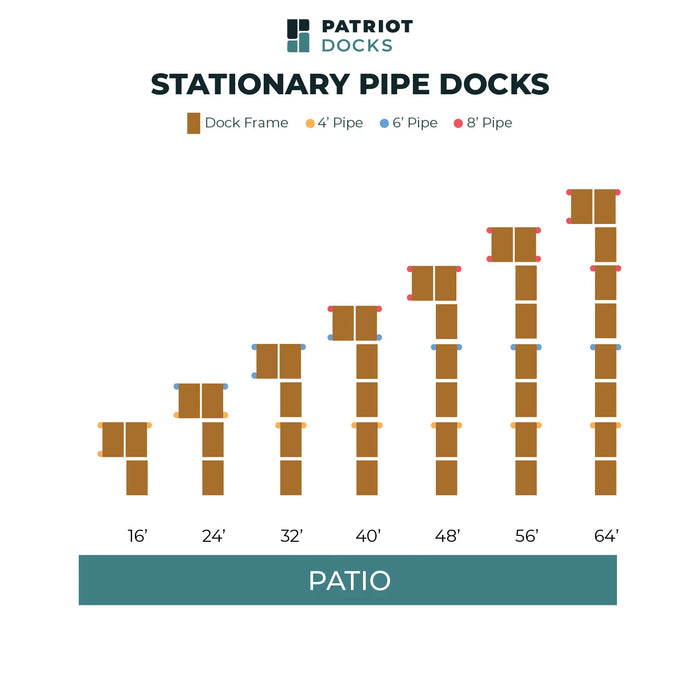

Side lip on frame conceals the decking edge for added safety and support. Follow these recommended post length standards for a safe and sturdy dock: Maximum span between supports is 16'. <16' = 4' supports, 16'-32' = 6' supports, >32' = 8' supports.

NOTE: Patriot Docks have a limited Lifetime Warranty on aluminum frame and aluminum decking.

16' Patio Dock Kit Includes:

• (3) 4 x 8 Frames
• (6) 4 x 4 Deck Panels
• (2) End Rail
• (3) Post Brackets
• (3) 4' Posts
• (3) Foot Plates for Posts
• (3) Vinyl Caps for posts
• Nuts and Bolts

24' Patio Dock Kit Includes:

• (4) 4 x 8 Frames
• (8) 4 x 4 Deck Panels
• (2) End Rail
• (4) Post Brackets
• (2) 4' Posts
• (2) 6' Posts
• (4) Foot Plates for Posts
• (4) Vinyl Caps for posts
• Nuts and Bolts

32' Patio Dock Kit Includes:

• (5) 4 x 8 Frames
• (10) 4 x 4 Deck Panels
• (2) End Rail
• (5) Post Brackets
• (2) 4' Posts
• (3) 6' Posts
• (5) Foot Plates for Posts
• (5) Vinyl Caps for posts
• Nuts and Bolts

40' Patio Dock Kit Includes:

• (6) 4 x 8 Frames
• (12) 4 x 4 Deck Panels
• (2) End Rail
• (6) Post Brackets
• (2) 4' Posts
• (2) 6' Posts
• (2) 8' Posts
• (6) Foot Plates for Posts
• (6) Vinyl Caps for posts
• Nuts and Bolts
