Patio Pipe Dock Kit – Extra Space Where It Counts
The Patio Pipe Dock Kit brings added comfort and functionality to your permanent dock setup with a wider end platform perfect for relaxing, fishing, or docking watercraft. It's a smart upgrade from a straight dock, offering just the right amount of extra space without going overboard.
Ideal for farm ponds, lakes with choppy conditions, or remote properties that need a stationary, ultra-strong dock, this configuration provides the strength, simplicity, and space that make it one of our most popular options.
Strong Foundation. Simple Design.
Patriot Docks are built on 13-inch tall aluminum truss frames, the tallest in the category. That added height gives every dock section superior rigidity and long-term trust. Combined with galvanized pipe supports that anchor into the lake bottom and adjust for depth, this dock stays solid in the face of waves, wind, and time.
The modular frame bolts together easily, and every bracket features dual set-bolt hardware for added peace of mind—no rusting, no loose connections, no moving parts.
Proven Engineering. Unmatched Value.
These stationary pipe docks have been refined and perfected for over a generation, earning a reputation for rugged performance and reliability. With thoughtful engineering and time-tested materials, Patriot Docks offer the best value in the industry—balancing unbeatable prices with rock-solid quality you can count on.
Why Choose a Patio Dock Kit?
-
Wider platform at the end of the dock for added seating or activity space
-
Lightweight, bolt-together truss frames with exceptional strength
- Adjustable galvanized pipe legs for leveling on any lake bottom
- Great for stationary, seasonal, or long-term dock installations
- L-shaped for added functionality
-
Expandable and customizable with additional dock sections
Looking for the best value in a permanent dock kit? The Patio Pipe Dock delivers big utility without the big price tag.
Need help planning your setup? Our dock specialists can assist with custom configurations to fit your shoreline perfectly.
Awesome Docks for the Average Joe.
Specifications
FRAME:
- Weight per frame: 45 pounds
- Frame Height: 12 inches
- Frame Weight Capacity: 45 PSF when constructed as specified
- Frame Material: Auminum (Marine Grade 6061-T6)
- Frame Style: 13" Truss
- Frame Build: Bolts Together
- Support Span: Every 16 feet
PIPE:
- Bracket Material: Steel
- Bracket Adjustment Style: Loosen 1/2 inch Dual Set Bolts and Manually Lift or Lower Frame then Tighten Bolts
- Bracket Pipe Accommodates 1-1/2" Sch40 Pipe
- Pipe Material: Galvanized Steel
- Pipe Size: 1-1/2" ID Sch40 Pipe
- Pipe Weight Capacity: 1000 pounds/ each
DECKING:
- Decking Panel Measurements: 48x48x1 inches
- Aluminum Panel Weight: 25 pounds
- Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Screwed Stringers, Powder Coating, and Wood Grain Finish
HARDWARE:
- Hardware material: Grade 8 Zinc-plated
- Hardware size: 3/8" or 1/2"
Features
DOCK FRAMES: Lightweight (45lbs); Strong truss (13"
tall, 5" taller than industry average); No-rust aluminum; Modular (bolt together assembly); Nests decking (frames in drop-in decking panels)
PIPE SUPPORTS: Strong galvanized steel pipes; Dual
set bolt locking for safety; Projects above dock for handle support or solar lighting; Fully manually adjustable; Protective pipe cap; Large foot pad

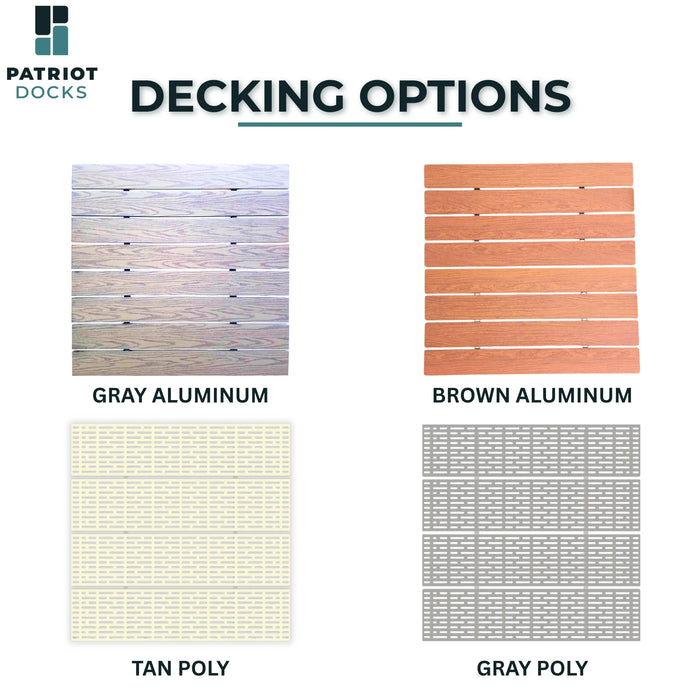

DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame
DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with instruction video and step-by-step PDF
