Roll-N-Go 1000 Series Boat Roller Ramp System 16' - Aqua Gear Supply

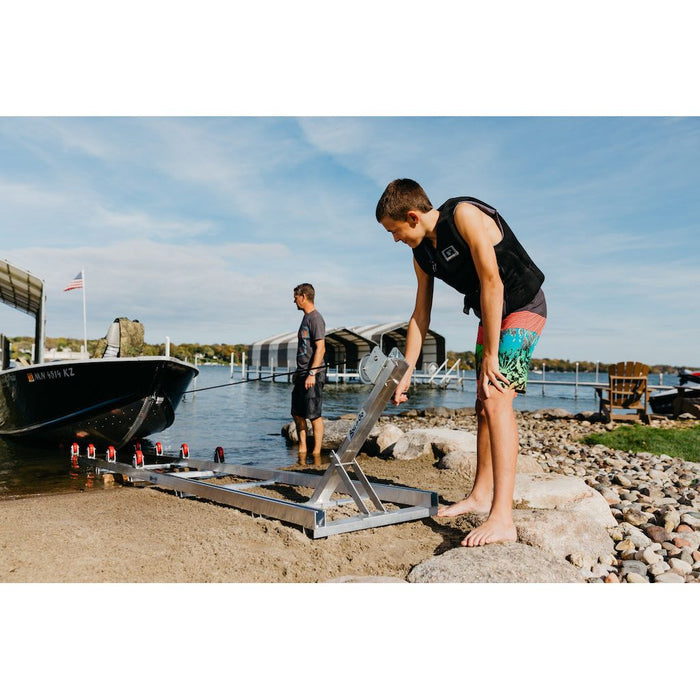

Roll-N-Go 1000 Series Boat Roller Ramp System 16'

by Roll N Go

✅ FREE SHIPPING on all orders $50+ within the continental US!

✅ Questions? Call us at 1-833-287-2782

$1,929.99
$1,929.99 - $2,829.98
$1,929.99
$1,929.99
$1,929.99 - $2,829.98
$1,929.99
 More payment options
0 seconds ago

The patented aluminum Roll-n-Go 1000 Series Roller Ramp System is the most affordable shore docking system for boats. It combines durable, rust resistant components with all the standard features you expect from the leader in shore docking systems. This shore ramp kit is easy to assemble and can have your watercraft in and out of the water in seconds. Avoid the possibility of damage to your boat by docking it on shore with our 1000 Series shore docking kit ideal model for fishing, sail and row boats.

Ramp System Includes:

  • 16′ Aluminum Track Kit (Qty 1)
  • 1,100lb. Standard Winch (Qty 1)
  • 30′ Strap (Qty 1)
  • Polyurethane Rollers (Qty 12)
  • Keel Roller (Qty 1)

Rail width adjusts from 22″ to 32″ and three winch height adjustments accommodate most types of watercraft. Available with 4’ and 8′ Extensions and Leg Kits for use on contoured shorelines. From Roll-n-Go Shore Docking Systems.


Product Comparison

SPECS

FEATURES 1000 1500 2000 Pontoon
MAX. WEIGHT CAPACITY 1,000 lbs. 1,500 lbs. 2,000 lbs. 2,000 lbs.
WEIGHT 90 lbs. 120 lbs. 155 lbs. 250 lbs.
OVERALL LENGTH 16' 16' 16' 16'
OVERALL WIDTH Adjustable Adjustable 22"-39" Adjustable 33"-49" Adjustable*
TRACK WIDTH Adjustable 22"-32" Adjustable 22"-32" Adjustable 24"-40" Adjustable*
ROLLER TYPE 1.5" Width X 3.5" Diameter 3.5" Width X 5" Diameter 3.5" Width X 5" Diameter 1.5" Width X 3.5" Diameter
# OF ROLLERS 12 16 24 52
TILTING ROLLER AXLE N/A Yes Yes N/A
CONSTRUCTION Aluminum Aluminum Aluminum Aluminum
HARDWARE Stainless Steel Stainless Steel Stainless Steel Stainless Steel
WINCH Zinc Plated Zinc Plated Zinc Plated Zinc Plated
  Dead Lift Rating 1,100 lbs. 1,100 lbs. 1,600 lbs. 1,600 lbs.
  Strap Length 30' 30' 30' 30'
  Hook Type Standard Boat Hook Standard Boat Hook Standard Boat Hook Standard Boat Hook
ANCHORING See Below See Below Screw-in Ground Anchor Screw-in Ground Anchor
OPTIONS
EXTENSION SECTIONS 8' & 4' 8' & 4' 8' & 4' 8'
ANCHORING RECOMMENDED w/ steeper slope or extensions w/ steeper slope or extensions Included in Kit Included in Kit
WINCH UPGRADE AVAILABLE N/A 1,500-lb. self-braking w/ 50' cable 1,500-lb. self-braking w/ 50' cable 1,500-lb. self-braking w/ 50' cable
SUPPORT LEG KIT Yes Yes Yes Yes
WIDE SUPPORT KIT Yes Yes Yes Yes
FLOAT KIT Yes Yes Yes N/A

Features & Benefits

High Quality Materials

High Quality Materials

Marine grade aluminum and stainless steel materials are corrosion and rust resistant.

Easy To Assemble

Easy To Assemble

Full easy-to-follow assembly instructions are included for quick assembly.

Warranty

Warranty

We stand behind our products with a full warranty.

Adjustable & Customizable

Adjustable & Customizable

Our products work with a wide variety of boat types.

Light Weight

Light Weight

Light enough to lift but strong enough to support your boat. And, ships directly to your door!

Affordable

Affordable

Less expensive than a traditional boat lift system.

Salt or Fresh Water

Salt or Fresh Water

By using quality materials, our products work great in all water types.

Works on Most Shorelines

Works on Most Shorelines

From sandy to rip-rap shorelines, our products work on most shorelines.



We currently have 10 In stock.
